アスロックインダスアルコンピューター社は、マザーボード、エッジコンピューター、およびその他の製造、ビジネス、小売業界向け製品の分野に焦点を当て、2018年7月にペガトロングループの一員であるアスロック社の産業用PC部門が分離独立し、設立されました。産業用PCマザーボードの世界的リーダーであり、現在は世界中に顧客がおります。
-

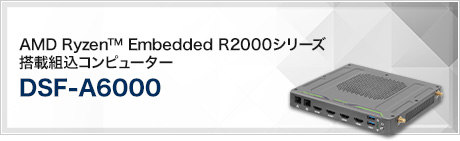

- AMD Ryzen™ Embedded R2314 Processor
- 2 x 260-pin SO-DIMM DDR4 2666 MHz, up to 64GB (32GB per DIMM)
- 2 x USB 3.2 Gen2/1 x USB 2.0/1 x M.2 Key B/1 x M.2 Key E,/1 x M.2 Key M
- 1x Intel Gigabit LAN/1 x Realtek Gigabit LAN/1 x Realtek 2.5 Gigabit LAN
- 4x HDMI 2.0b/Optinal Support Allxon 24/7 AI device remote management
- 182.2mm X 175.2mm X 25mm, Fanned Barebone
-

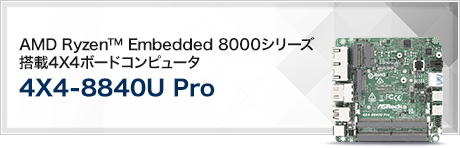

- AMD Ryzen™ Embedded 8840U processor
- 2 x 262-pin SO-DIMM DDR5 5600 MHz, up to 96GB (48GB per DIMM)
- 2 x USB4, 1 x USB 3.2 Gen2, 2 x USB 2.0, 2 x M.2 Key M, 1 x M.2 Key E
- 1 x Realtek Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.1, 2 x DP 1.4a (from Type-C)
-
- NVIDIA Jetson Orin NX 16GB SOM Super Mode support, up to 157 SPARSE (78 DENSE) INT8 TOPS
- POE SKU integrates 2x POE ports. Each port supports IEEE 802.3AF
- Anti Shock and Vibration
- Wide Range Operating Temperature
- 12-36V Phoenix type DC IN support
-

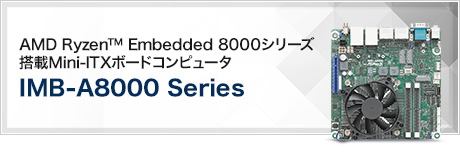

- AMD Ryzen™ Embedded 8000 Series processors
- 2 x 262-pin SO-DIMM DDR5 5600 MHz, up to 96GB (48GB per DIMM)
- 1 x PCIe x8 (Gen4)/4 x USB 3.2 Gen2/4 x USB 2.0/1 x M.2 Key B/1 x M.2 Key M,/1 x M.2 Key E,/5 x COM/2 x SATA3
- 1 x Realtek Gigabit LAN/1 x Realtek 2.5 Gigabit LAN/4 x DP 1.4a
- 12~28V DC-In (Lockable DC Jack)
-

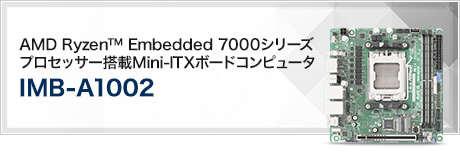

- AMD Ryzen™ Embedded 7000 Series processors with B650 Chipset
- 2 x 288-pin Long-DIMM DDR5 5200 MHz, up to 64GB (32GB per DIMM)
- 1 x PCIe x16 (Gen5)/6 x USB 3.2 Gen2/3 x USB2.0/1 x M.2 Key B/1 x M.2 Key M/1 x M.2 Key E/2 x COM/2 x SATA3
- 2 x Realtek Gigabit LAN
- 3 x DP 1.2/1 x eDP 1.4b/TPM 2.0 onboard IC
- ATX PWR (24+4-pin)
-

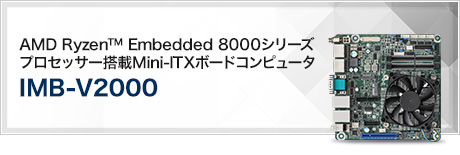

- AMD Ryzen™ Embedded V2000シリーズSoC processors
- 2 x 260-pin ECC/non-ECC SO-DIMM DDR4 3200 MHz, up to 64GB (32GB per DIMM)
- 4 x USB 3.2 Gen1/4 x USB 2.0,/1 x M.2 Key E/1 x M.2 Key M/1 x M.2 Key B/1 x PCIe x8/5 x COM/2 x SATA3
- 1 x Realtek 1 Gigabit LAN (Support DASH)/1 x Realtek 2.5 Gigabit LAN
- 1 x LVDS/1 x eDP/3 x DP 1.2/1 x DP 1.4
- TPM 2.0 onboard IC
- 12~28V DC-In (Lockable DC Jack)
-

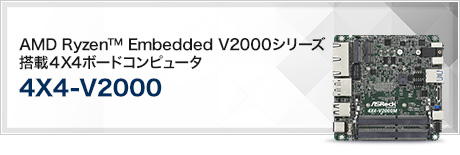

- AMD Ryzen™ Embedded V2718
- 2 x 260-pin non-ECC/ECC SO-DIMM DDR4 3200 MHz , up to 64GB (32GB per DIMM)
- 4 x USB 3.2 Gen2/4 x USB 2.0/1 x M.2 Key M/1 x M.2 Key E/1 x COM/1 x SATA3
- 1 x Realtek 1 Gigabit LAN (Support DASH)/1 x Realtek 2.5 Gigabit LAN
- 1 x Realtek 1 Gigabit LAN/1 x Realtek 2.5 Gigabit LAN/1 x HDMI 2.0a/3 x DP 1.2a
- TPM 2.0 onboard IC
- 12V~19V DC-In
-

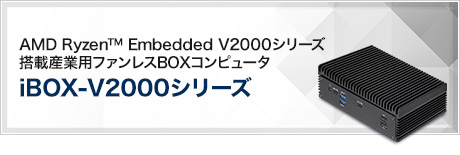

- AMD Ryzen™ Embedded V2718
- 4 x USB 3.2 Gen2/4 x USB 2.0/1 x M.2 Key M/1 x M.2 Key E/1 x COM/1 x SATA3
- 1 x Realtek 1 Gigabit LAN/1 x Realtek 2.5 Gigabit LAN
- 1 x HDMI 2.0a/3 x DP 1.2a
- 19V/90W Power Adapter
- 171.8 x 109.45 x 50.05mm Fanless Embedded BOX PC
